EDMI Mk11 电能表 关口表 开售

2019-08-21 20:59:01

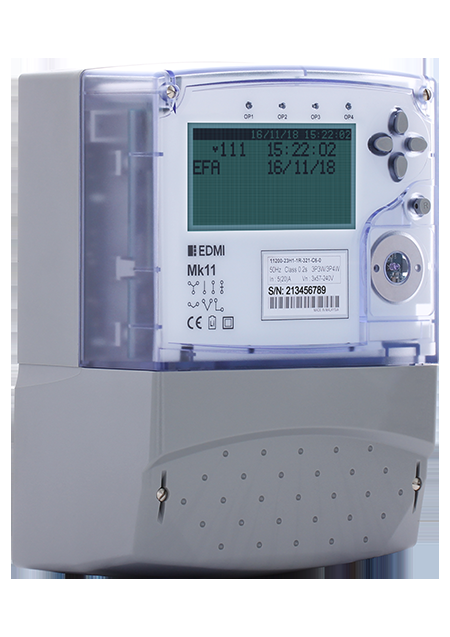

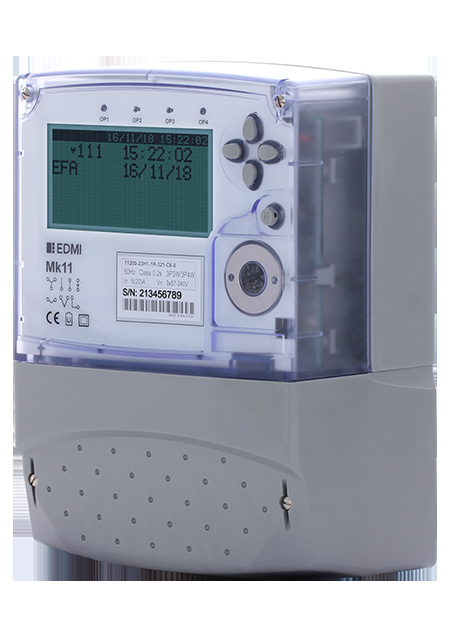

Mk11

High-Precision Power Quality Smart Meter

 GENIUS – Class 0.2S (MID Class C)

The Genius Mk11 is a highly-precision smart meter designed for generation, transmission and large industrial markets. Surpassing the IEC Class 0.2S requirement, it offers the highest level of metering system accuracy and equip with full power quality features complying to IEC 61000-4-30. In addition, Mk11 also offers 12kV impulse protection and complies to Safety Standard IEC 62052-31.

Standards and Compliance

  • Class 0.2S (MID Class C)

  • IEC 62052-11, 62053-22, 62053-24, 62052-31, 62059-32-1, 61000-4-30 Edition 3 (2015)

  • EN 50470-1 and 50470-3

  • NMI M6

Key Specifications

Voltage
  • Nominal Voltage: 57V – 240V L-N/100V to 415V L-L

  • Frequency: 50Hz – 60Hz

Current
  • CT Range: 0.3/1.2A, 1/6A, 1/4A, 0.3/6A, 1/10A, 5/6A, 5/10A, 5/20A

Dimension and Weight
  • 250mm (H) x 175mm (W) x 120mm (D)

  • Weight: 2.7kg
